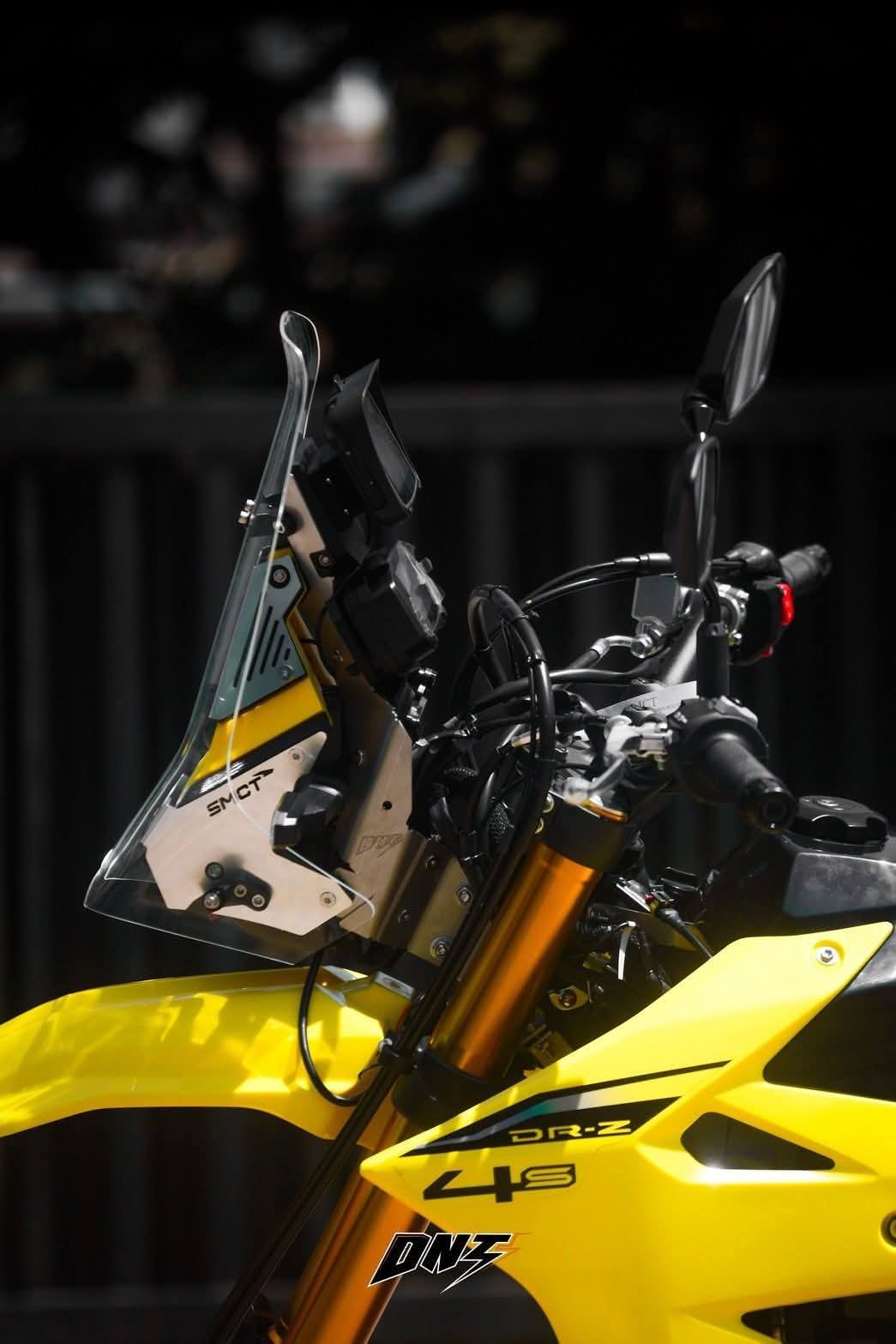

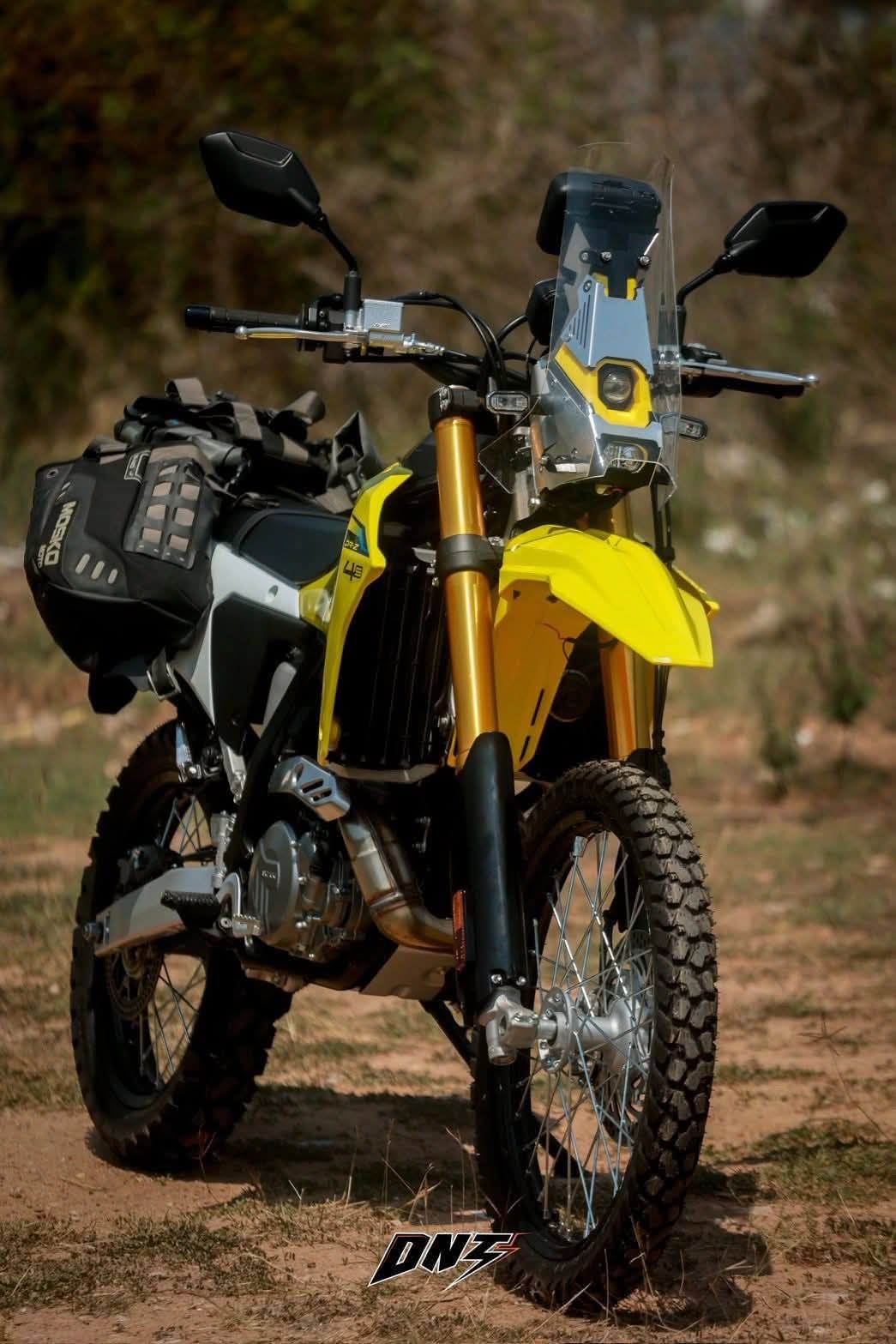

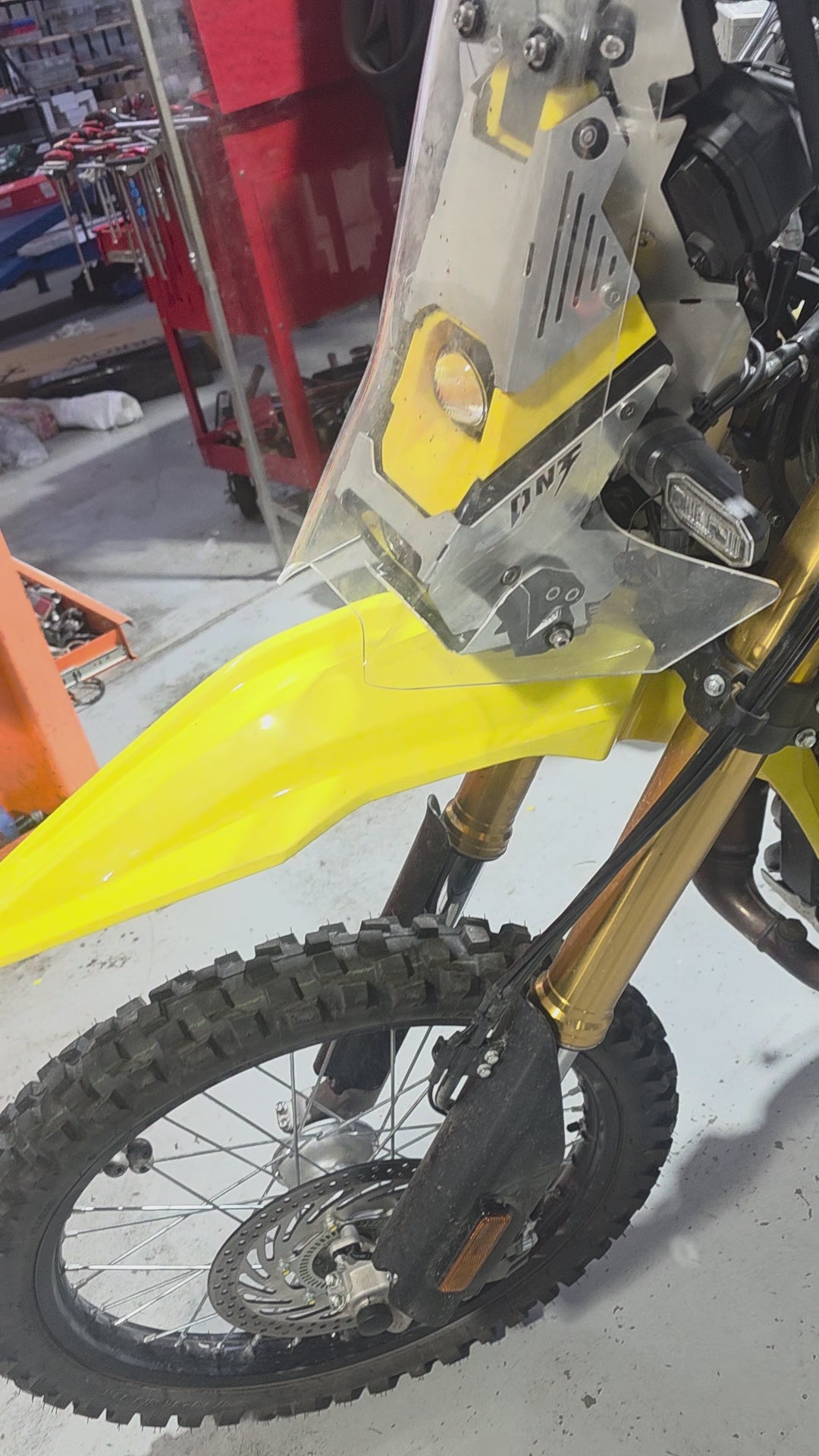

SUZUKI DR-Z4S DINOTECH RALLY HEADLIGHT KIT (2025–2026) SSS V2 EXTRA BRACKETS FITTED.
Now Available in Australia 🇦🇺 – Exclusively via SSS Motorcycles
Take your Suzuki DR-Z4S to the next level with the Dinotech Rally Headlight Kit — engineered for riders who demand serious lighting performance, rally styling, and real-world durability.
Whether you're pushing through the outback, tackling night stages, or just want that aggressive rally look — this kit delivers.
🔥 KEY FEATURES
True Rally Styling
Transforms your DR-Z4S into a Dakar-inspired machine
High-Output LED Lighting
Exceptional night visibility with a powerful beam spread for both road and off-road use
Plug & Play Fitment
Designed specifically for 2025–2026 Suzuki DR-Z4S models
Lightweight & Durable Construction
Built to handle harsh Australian conditions — dust, vibration, and heat
Improved Forward Vision
Ride faster and safer with superior lighting performance compared to OEM
⚙️ KIT INCLUDES

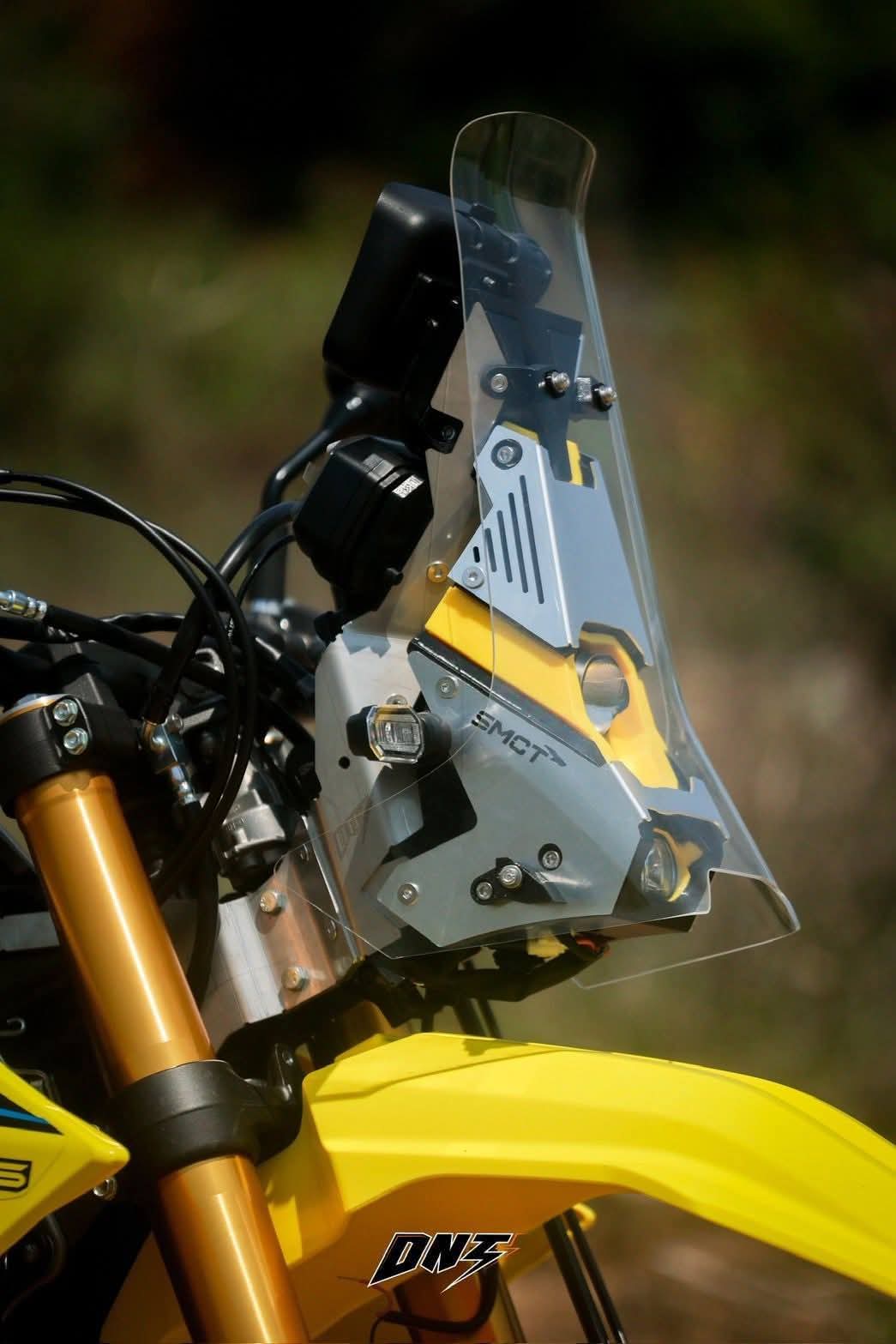

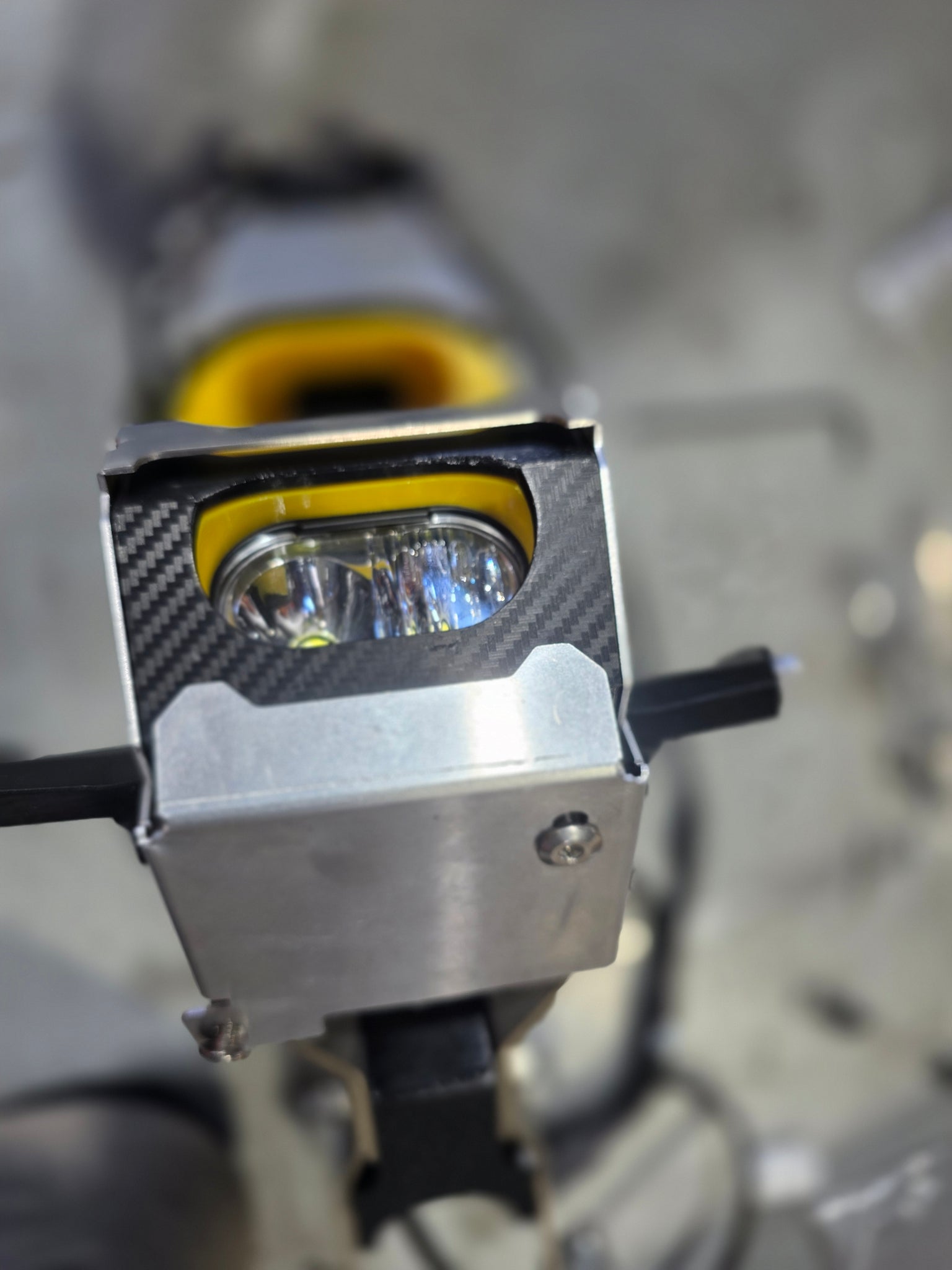

Dinotech Rally Headlight Assembly

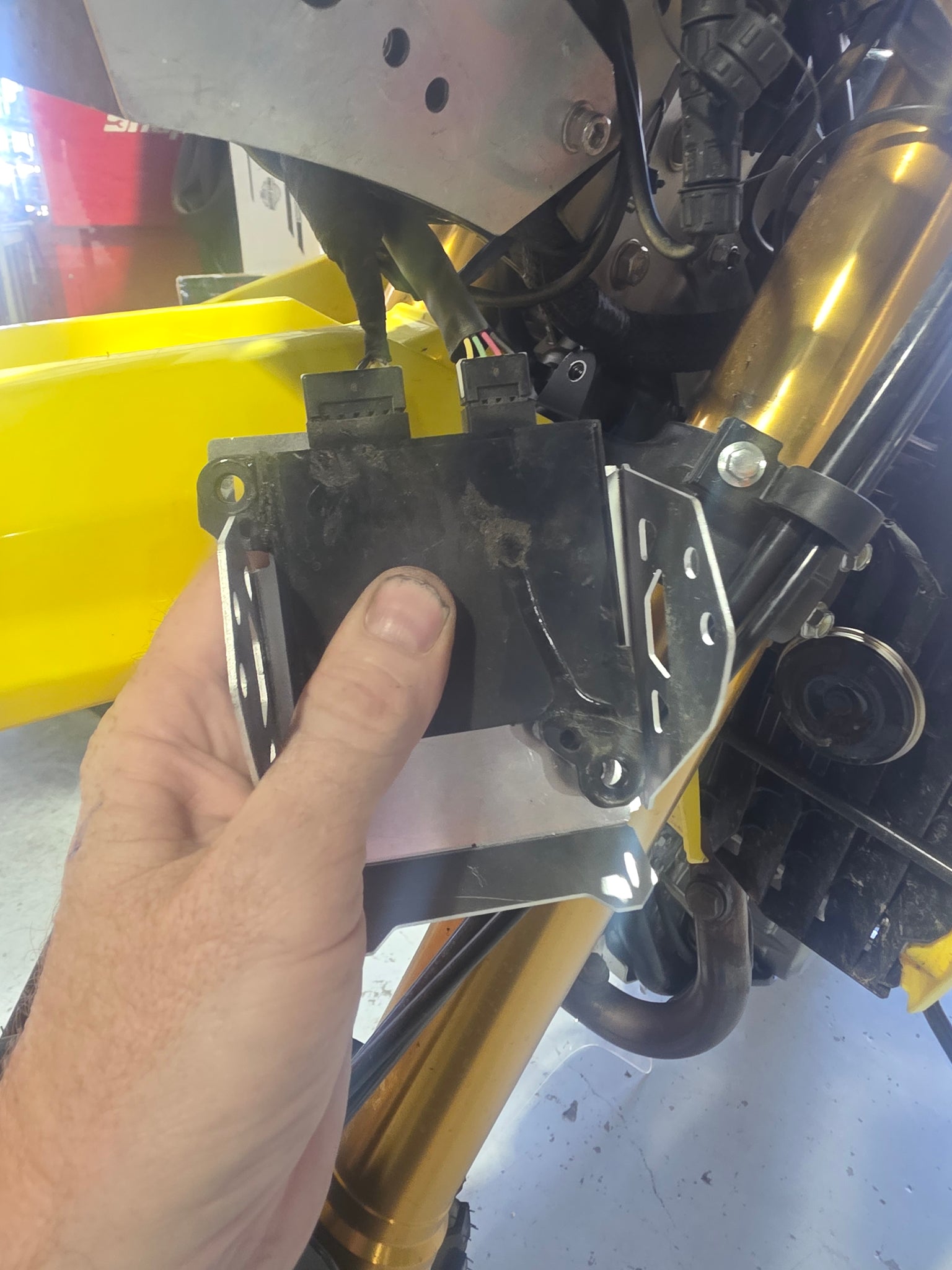

Mounting Brackets & Hardware
Wiring Harness (model-specific)
Installation Components
🇦🇺 SSS MOTORCYCLES ADVANTAGE
Australian stock & support
Fast shipping nationwide
Backed by SSS Motorcycles — performance specialists with 25+ years experience
Technical advice available before and after purchase
⚠️ IMPORTANT NOTES
Designed for off-road / rally use (check local ADR compliance if required)
Professional installation recommended
May require minor setup depending on accessories fitted
💥 WHY CHOOSE DINOTECH?
Dinotech is known globally for producing high-performance rally components, trusted by riders who demand reliability in extreme conditions.
🚀 UPGRADE YOUR DR-Z4S TODAY
Stand out. Ride further. See everything.
👉 Limited stock available — order now.
UPDATE – IMS 3-Gallon Fuel Tank Compatibility & Required Modifications
The Dinotech Rally Headlight Assembly for the Suzuki DR-Z4S is compatible with the IMS 3-Gallon Fuel Tank; however, some minor modifications are required when fitting the two products together.

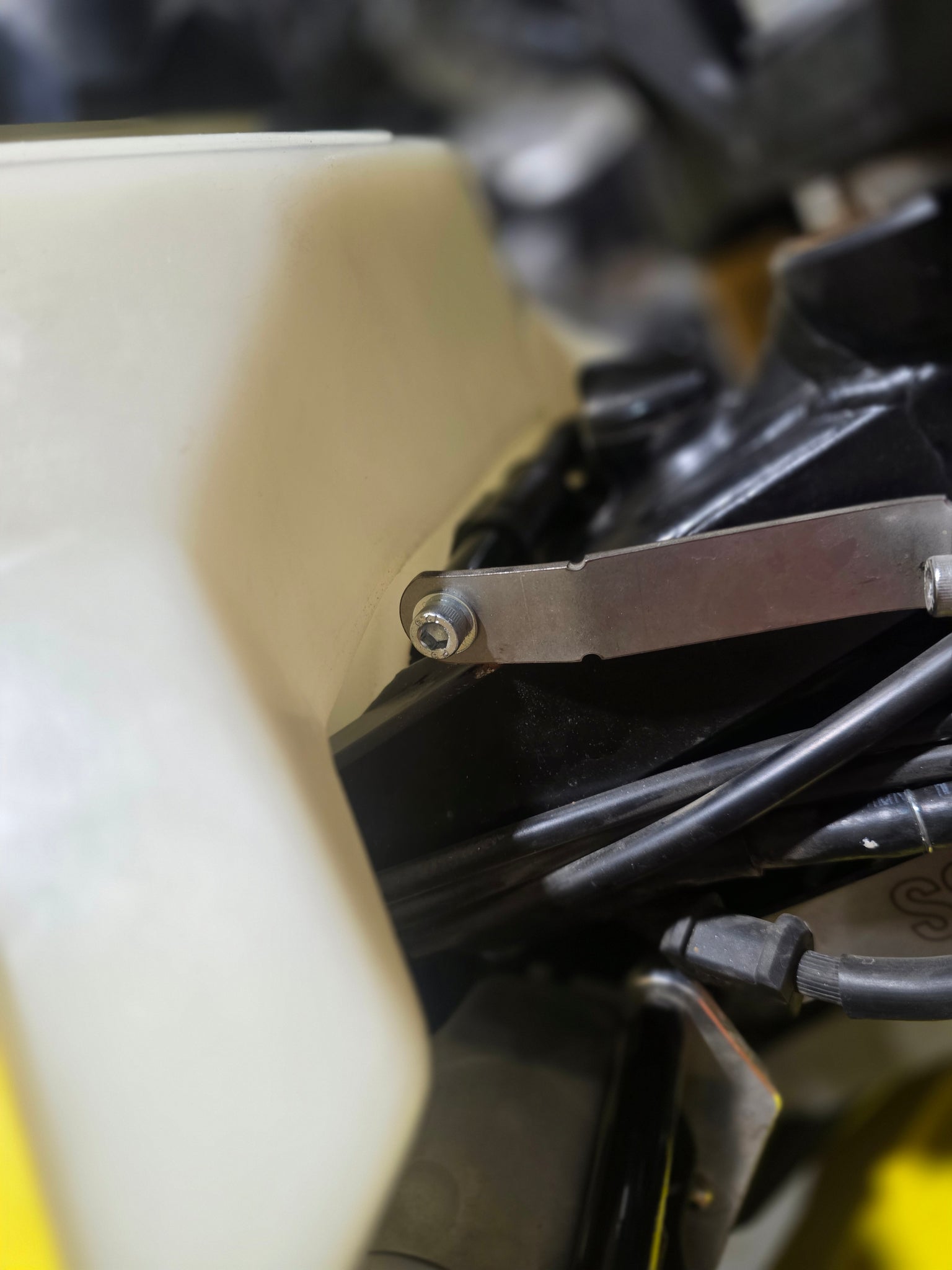

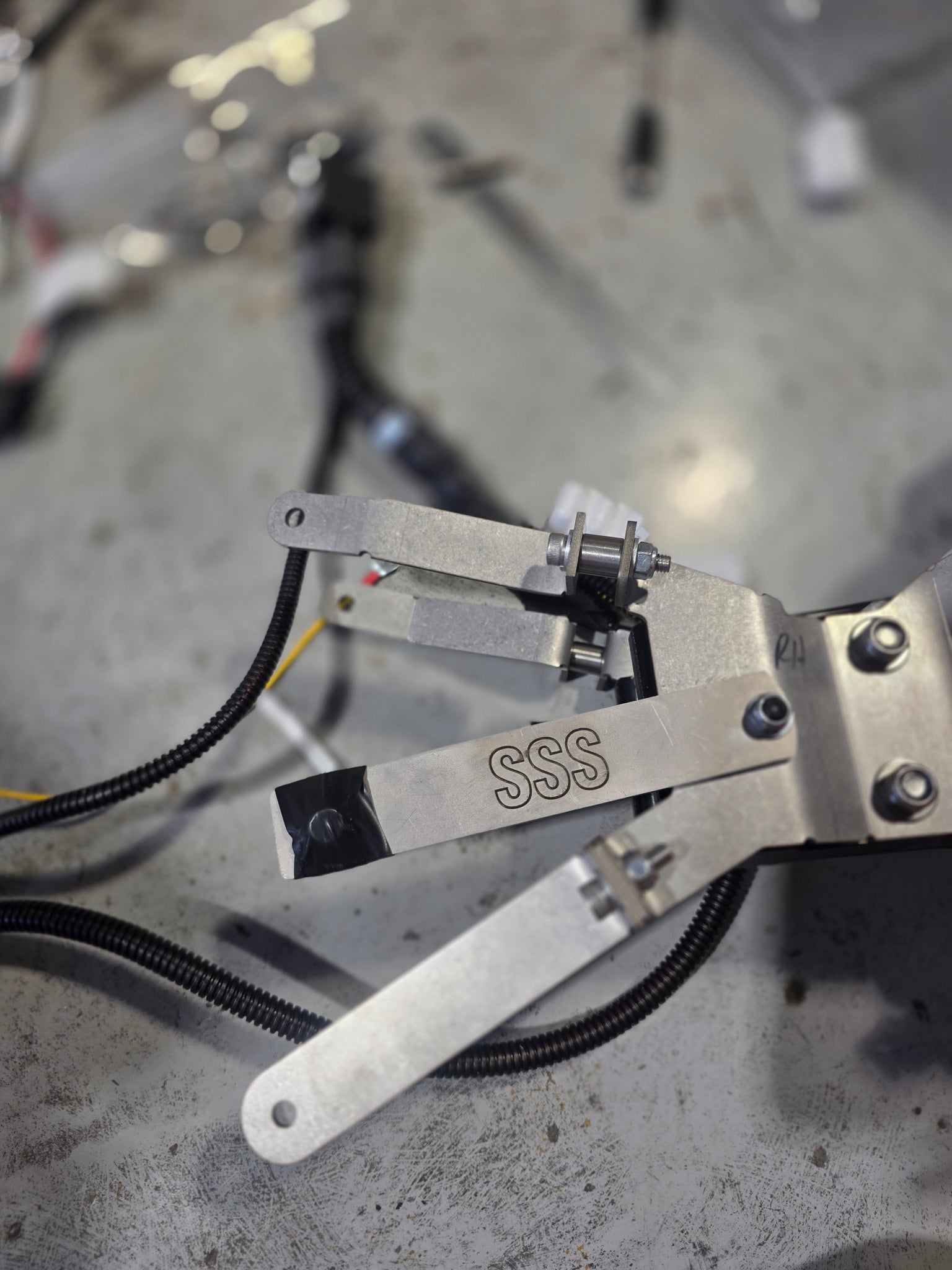

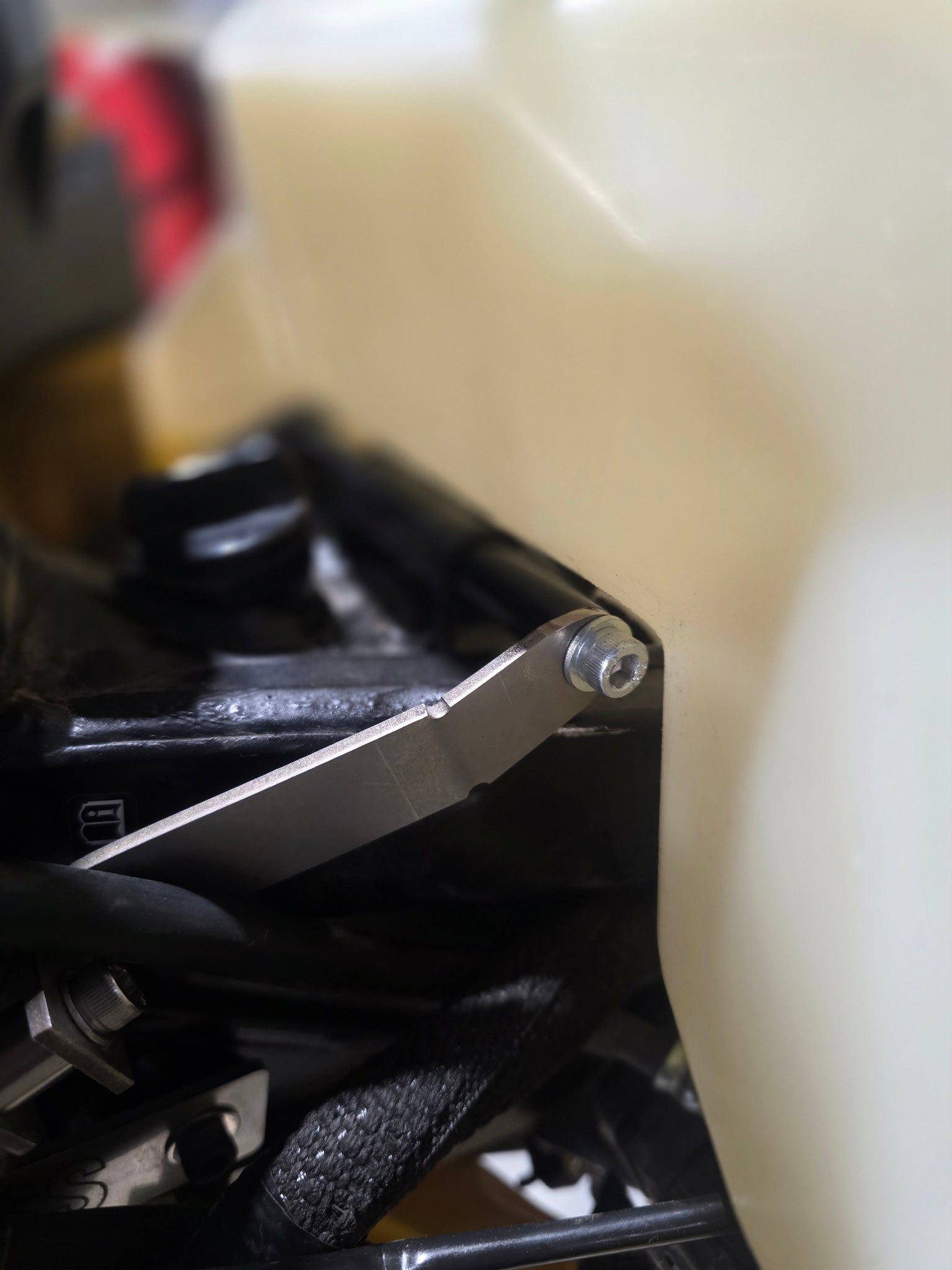

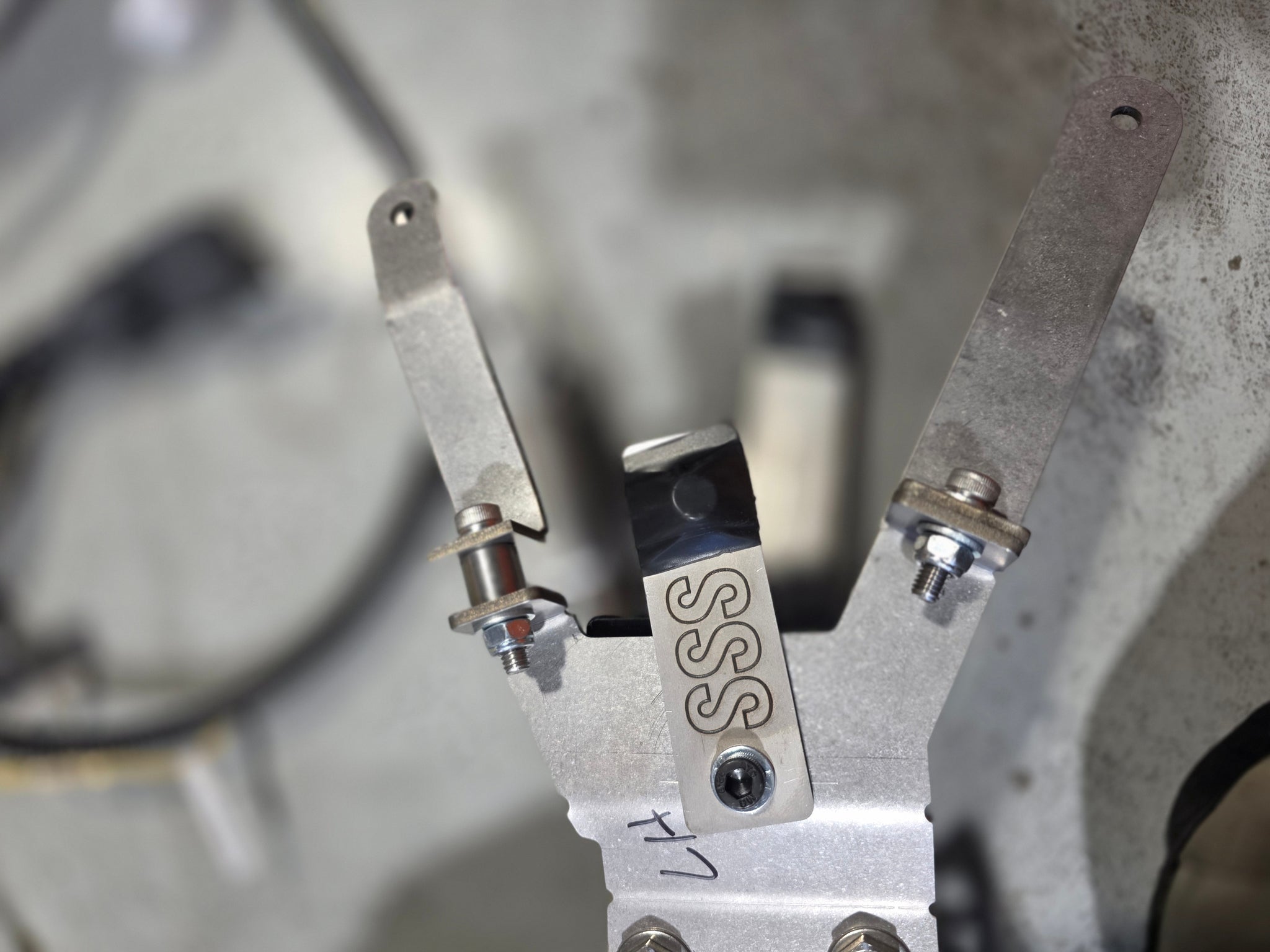

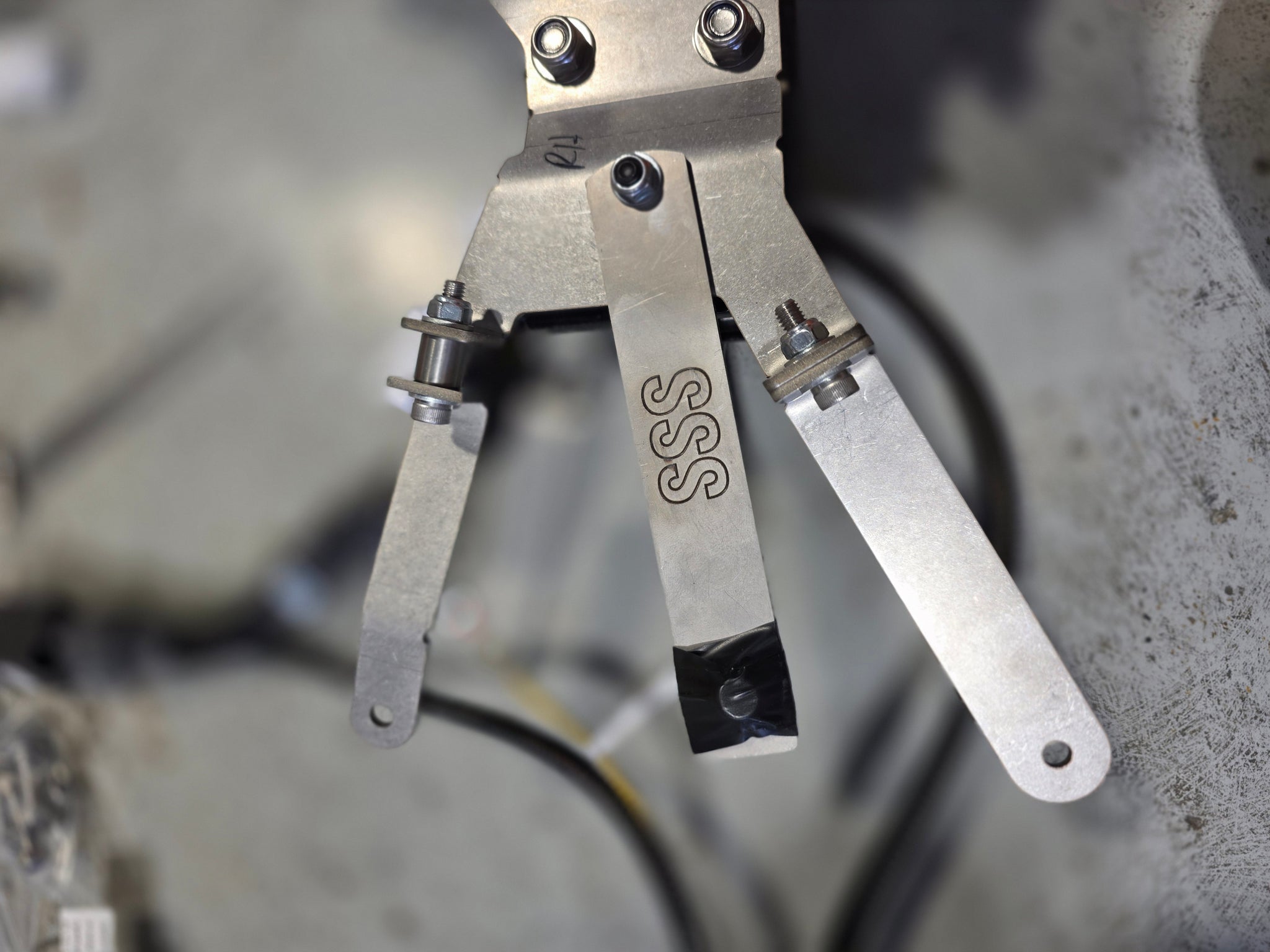

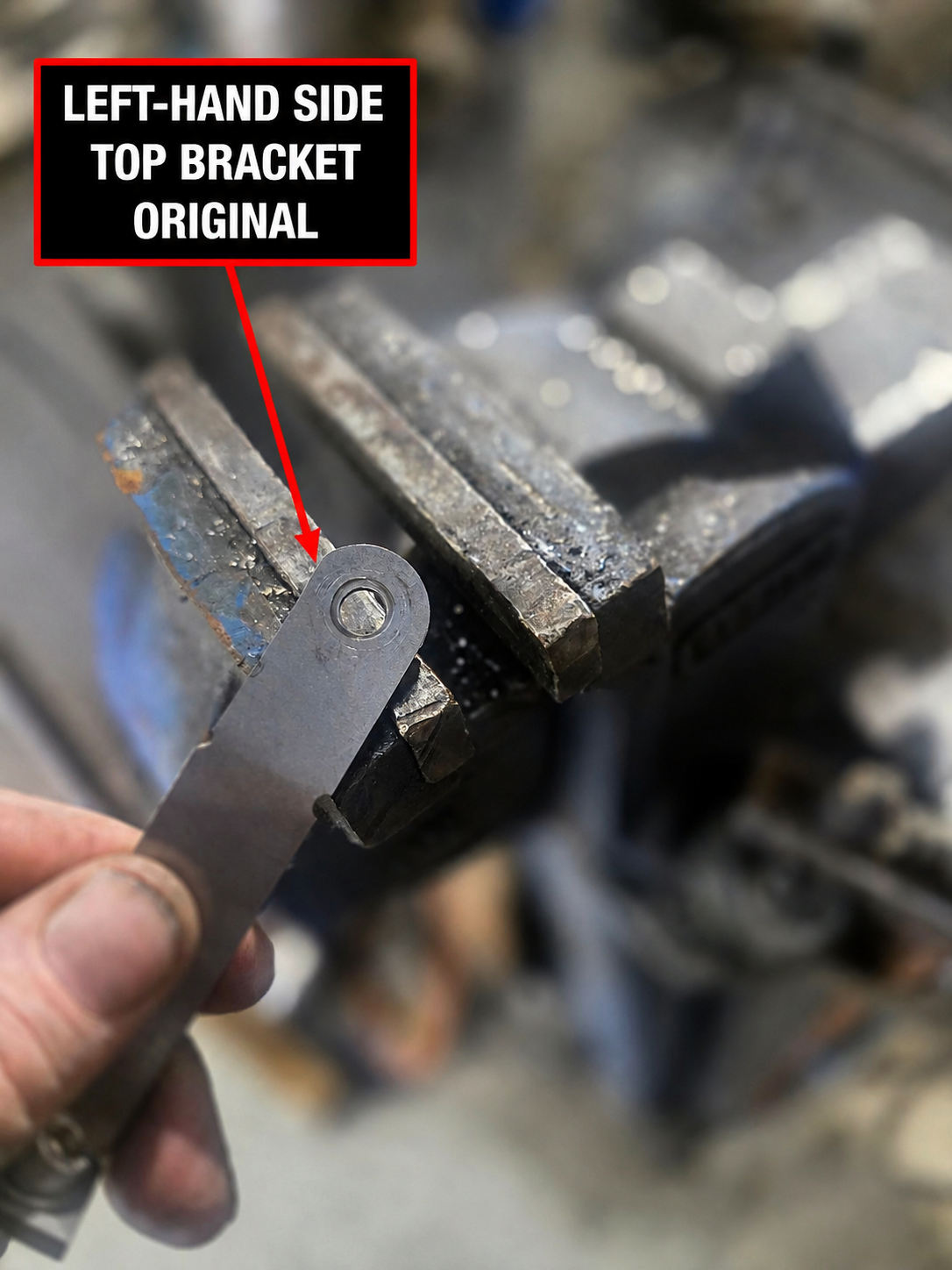

1. Top Left-Hand Stay Bracket Clearance
The top left-hand side stay bracket requires minor modification to provide adequate clearance between the bracket and the IMS plastic fuel tank.

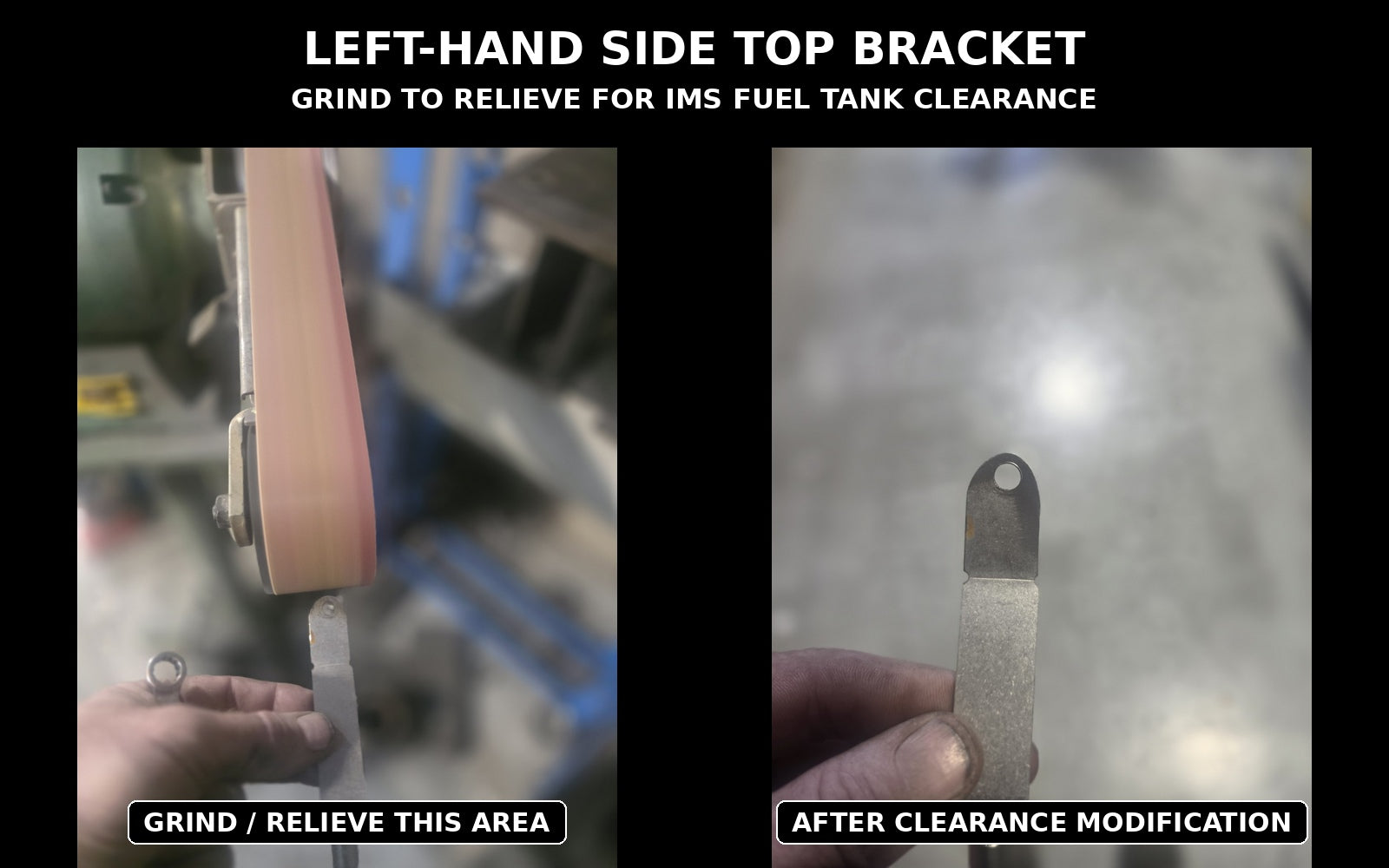

The end of the bracket must be carefully filed or ground back to provide sufficient clearance.

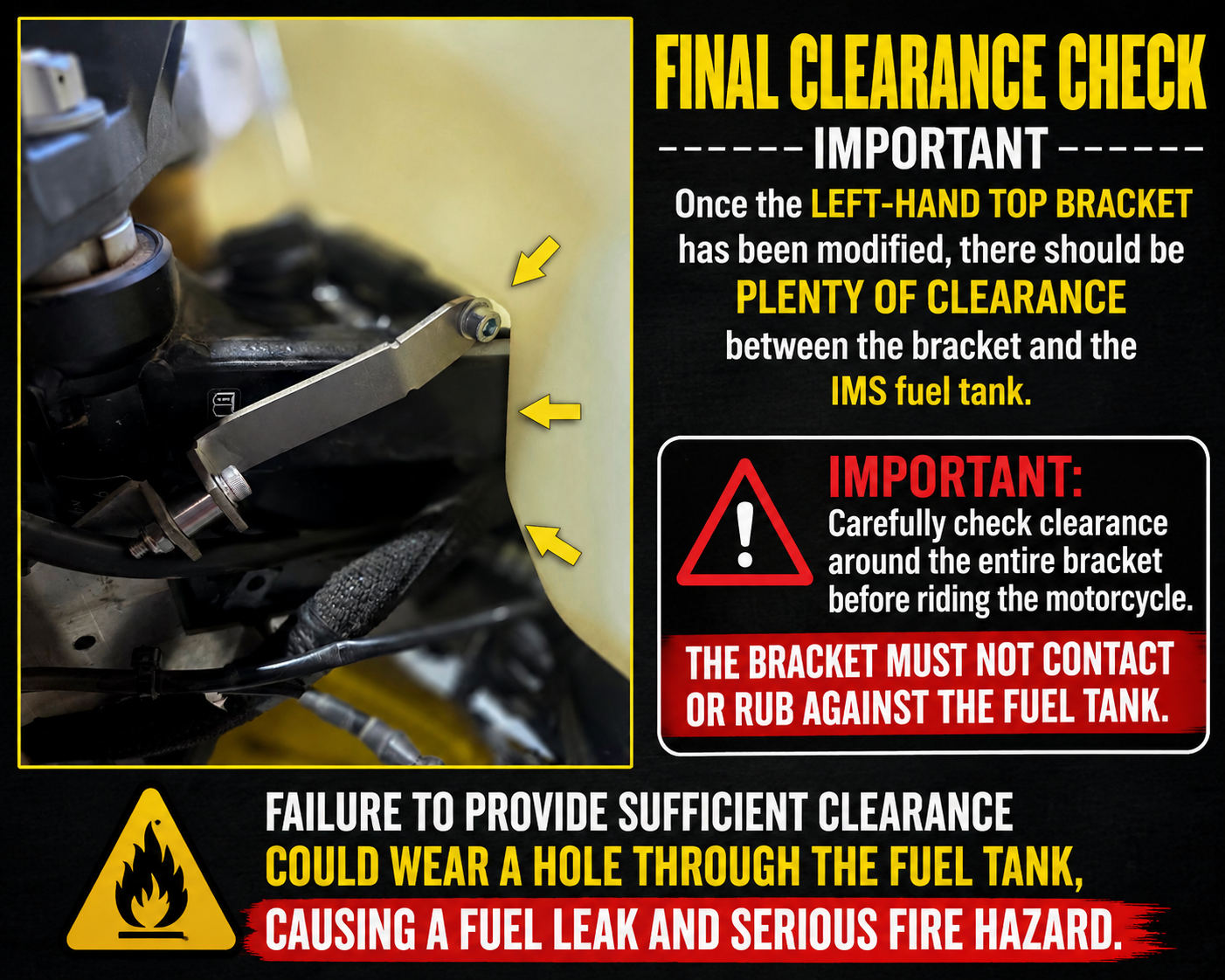

IMPORTANT: Always check clearance carefully after installation. The bracket must not contact or rub against the plastic fuel tank. Failure to provide adequate clearance could eventually rub a hole through the fuel tank, resulting in a fuel leak and potential fire hazard.

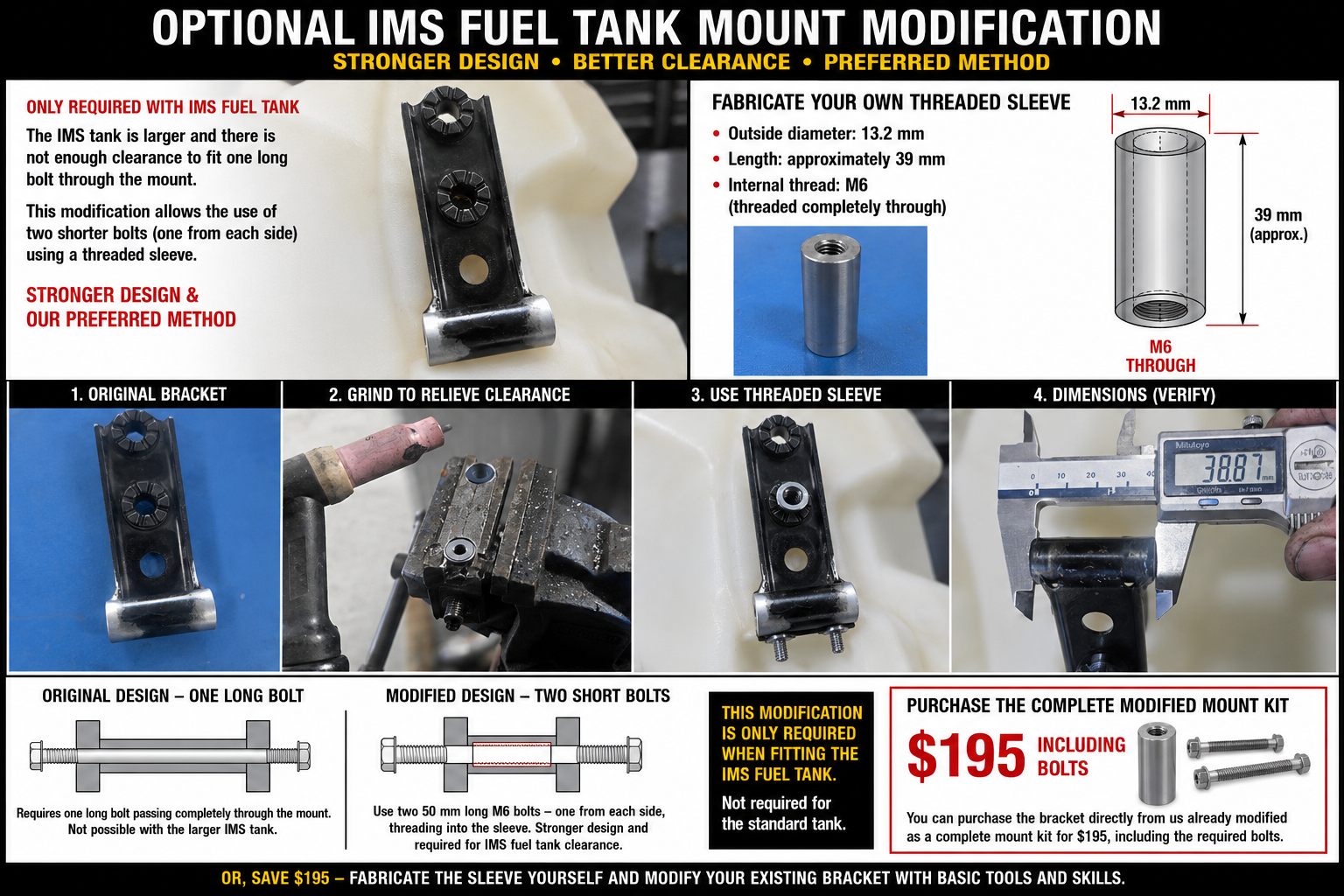

2. Main Mounting Bolt Modification
Due to the increased size and shape of the IMS 3-Gallon Fuel Tank, the original single long 6 mm through-bolt cannot be installed.
Instead, the mounting arrangement must be modified to use two separate 50 mm long 6 mm bolts, installed from opposite sides.
This requires modification of the original Suzuki fuel-tank mounting bracket, which is reused when fitting the IMS tank. A threaded insert/sleeve must be welded into the original bracket, replacing the original through-bolt arrangement and allowing the two separate 50 mm bolts to be installed.
This arrangement provides a strong and secure mounting solution.

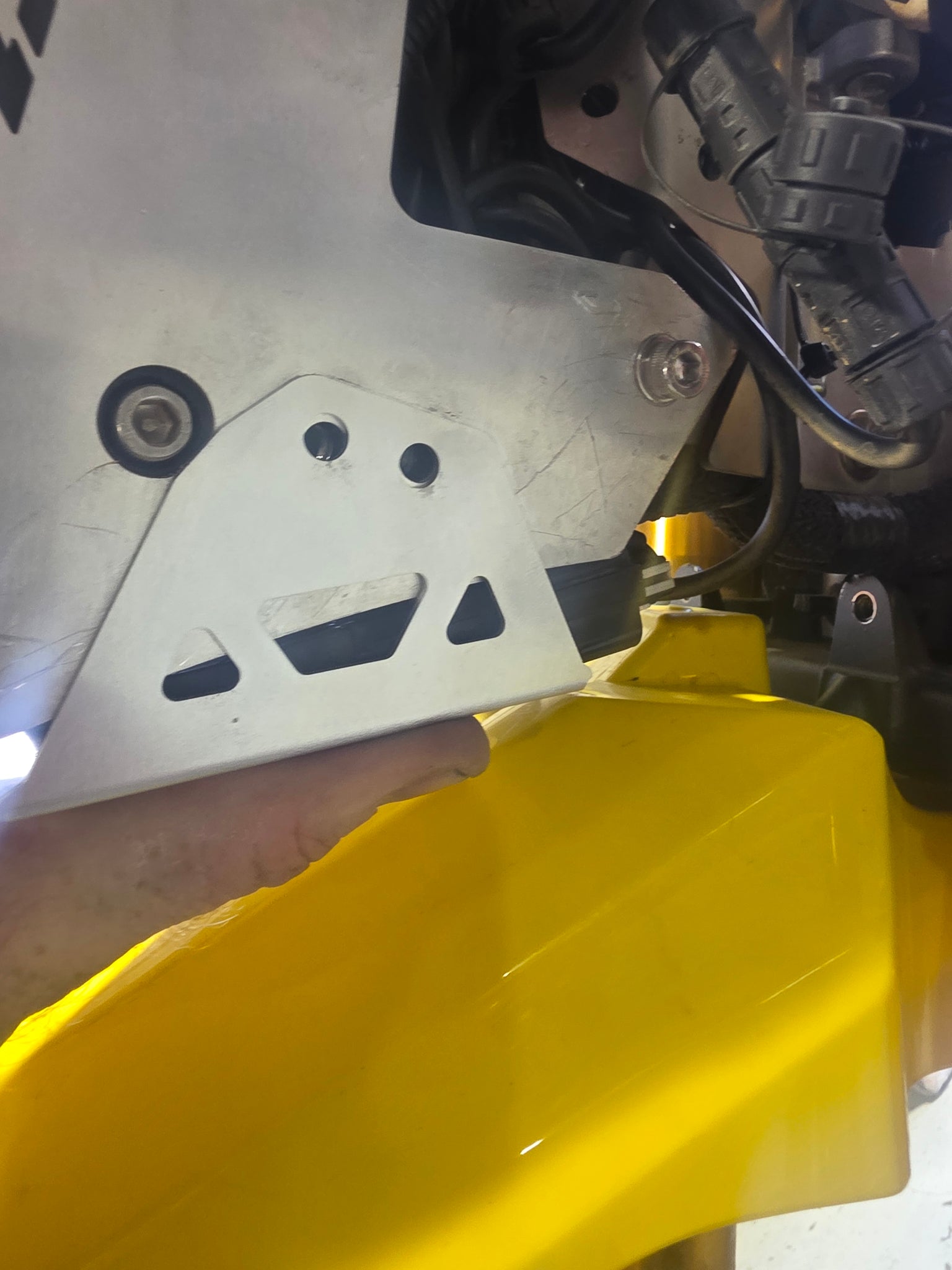

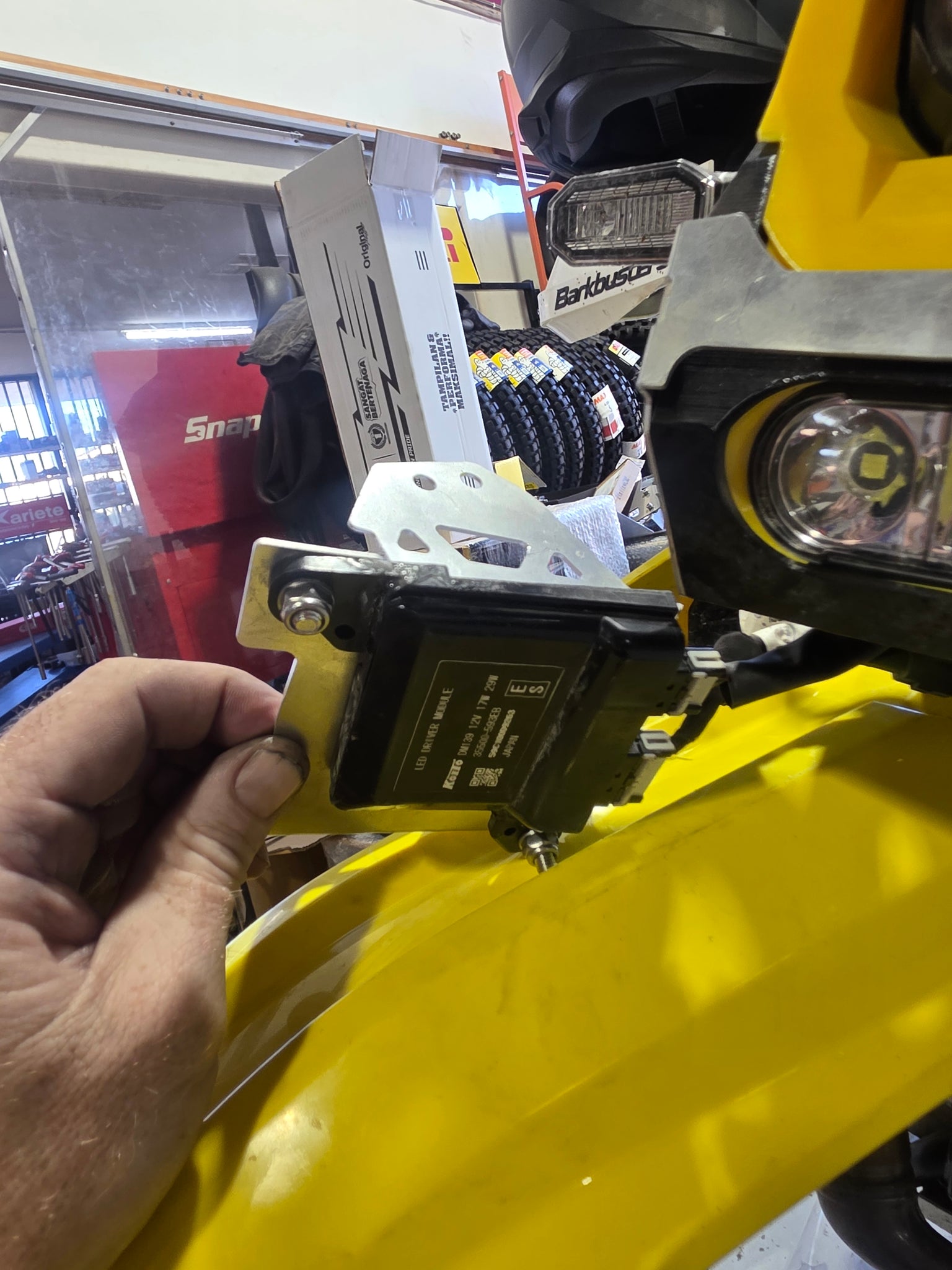

Installation Photos
Detailed photos showing the required bracket modifications and installation procedure are included in the product image gallery for reference.
Pre-Modified Mounting Kit – $195
For customers who do not wish to carry out the fabrication themselves, SSS MOTORCYCLES can supply the complete mounting assembly already modified and ready for installation for $195.
The kit includes:
- Original Suzuki mounting bracket
- Welded threaded insert/sleeve modification
- Required 6 mm mounting bolts
- Bracket supplied already fabricated for the IMS/Dinotech installation
Customers who have already purchased their IMS fuel tank from SSS MOTORCYCLES can purchase this mounting kit separately for $195.
PLEASE NOTE – SSS MOTORCYCLES CUSTOMERS ONLY
This modification kit and associated support are exclusively available to SSS MOTORCYCLES customers who have purchased both their Dinotech Rally Headlight Assembly and IMS fuel tank through SSS MOTORCYCLES.
We do not supply this modification kit or provide modification services for IMS fuel tanks purchased from other suppliers.
