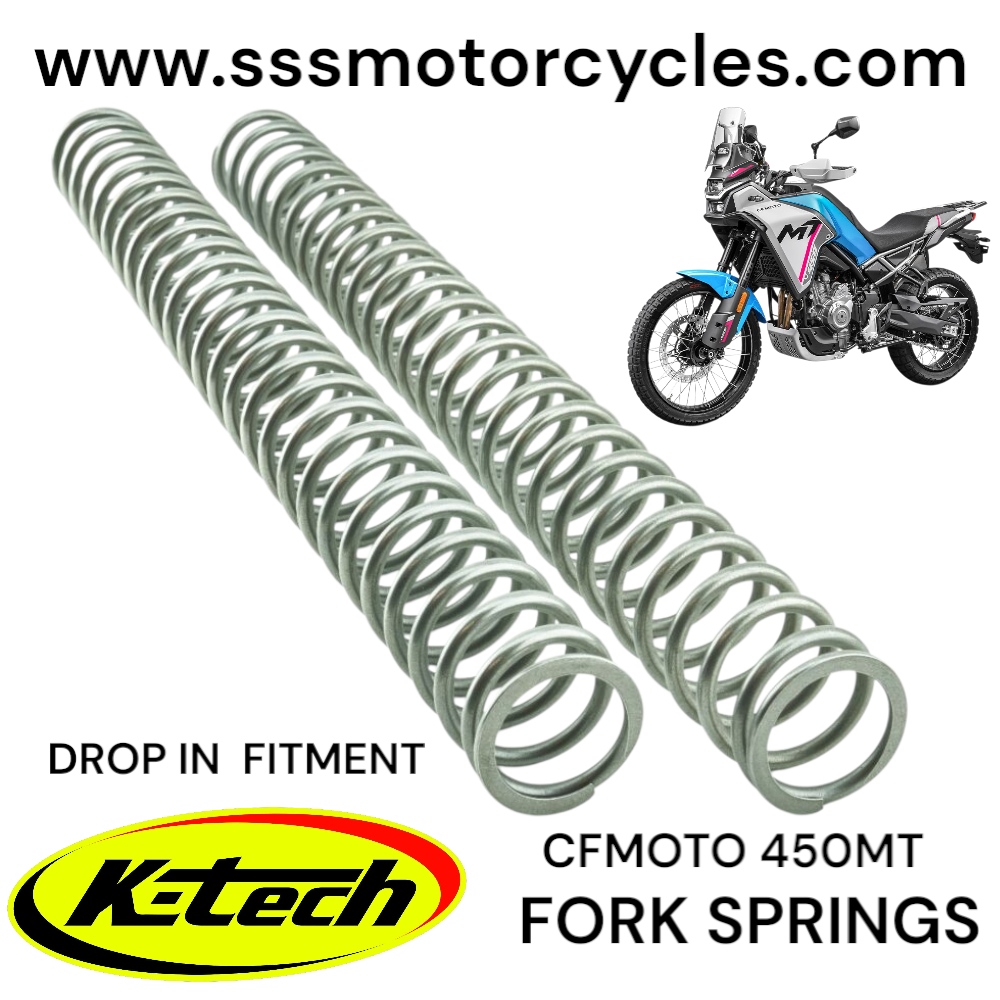

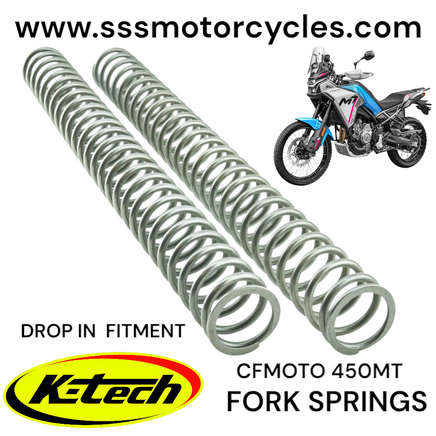

Front Fork Spring (Pair) 5.7N 6.0N 6.3N 6.6N
K-Tech fork springs are manufactured from the highest grade Chrome Silicone wire, each spring is cold coiled, heat treated, pre set and ground to length before being polished for ultimate performance. All springs have their rate laser etched on the end and are manufactured to DIN 2095 grade 1.
REAR SHOCK SPRINGS AVAILABLE ON SEPERATE LISTING UNDER CFMOTO 450MT PAGE.
Cold coiled
Heat treated
Tempered
Shot peened
Ground ends
Polished for reduced friction and smoother performance
Part number etched
FRONT
- OEM: KYB 41mm Open Cartridge (20 / 10 ) -USD
- Std Spring Rate (N): 3 - 5.3
- Preload (mm): -
- Unladen Sag (mm): 32.00
- Laden Sag (mm): 42.00
- Oil Viscosity (wt): 10.0
- Air Gap / Oil Volume: 200 mm
- Length: 870.00
- Stroke: 210.00
- Compression Clicker: -
- Rebound Clicker: -
REAR
- OEM: KYB (40/14) Mono Tube Piggyback
- Std Spring Rate (N): 97
- Preload (mm): 4.00
- Unladen Sag (mm): 22.00
- Laden Sag (mm): 66.00
- Oil Viscosity (Wt): 2.50
- Gas Pressure (bar): 10.00
- Length: 350.00
- Stroke: 85.00
- L/S Compression Clicker: -
- H/S Compression Position: -
- Clicker Position Rebound: 10
